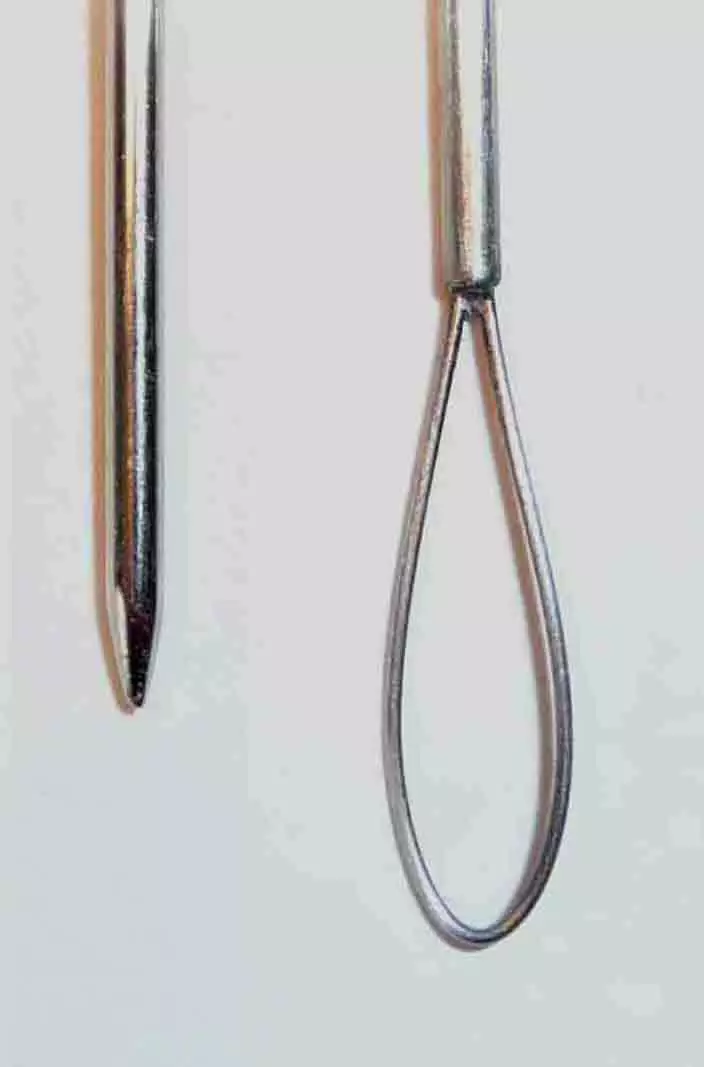

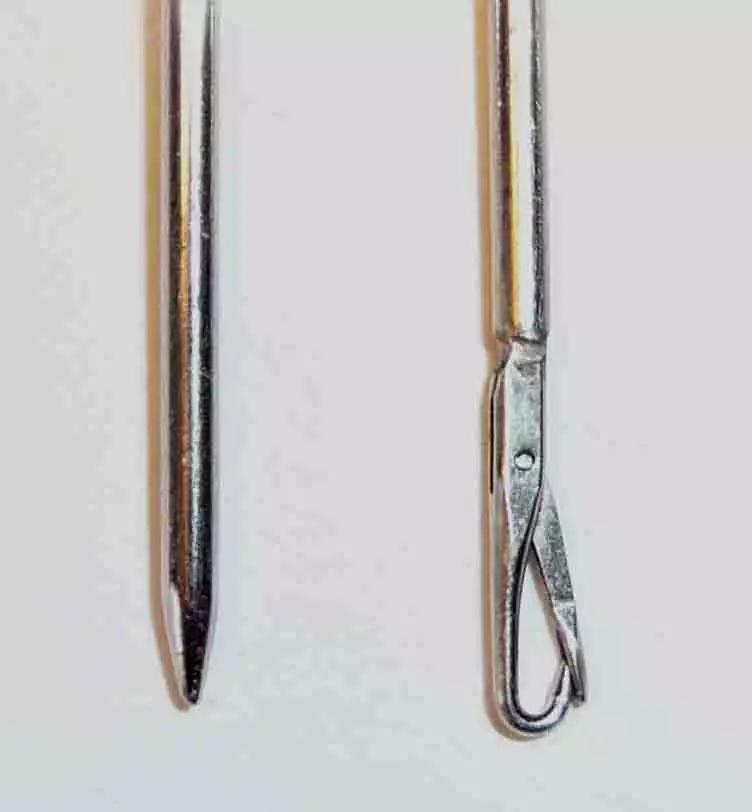

These splicing needles from DaHo Products are the finest quality 304 stainless steel needles available for making connections and loops with hollow core braids such as Jerry Brown LineOne, Momoi Diamond Braid, Seaguar, etc. The Hollow “threading needle” allows you to make a direct connection from hollow core spectra line to monofilament or fluorocarbon by sliding the monofilament into the hollow needle. The “reverse latch” needle allows you to make a locking loop in the end of your braid. The “loop splicing” needle allows you to do a braid-to-braid “butt splice”, and the tag end on a locking loop connection. We have these available in kits, and as single needles.

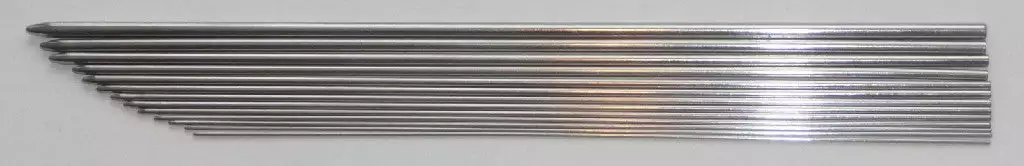

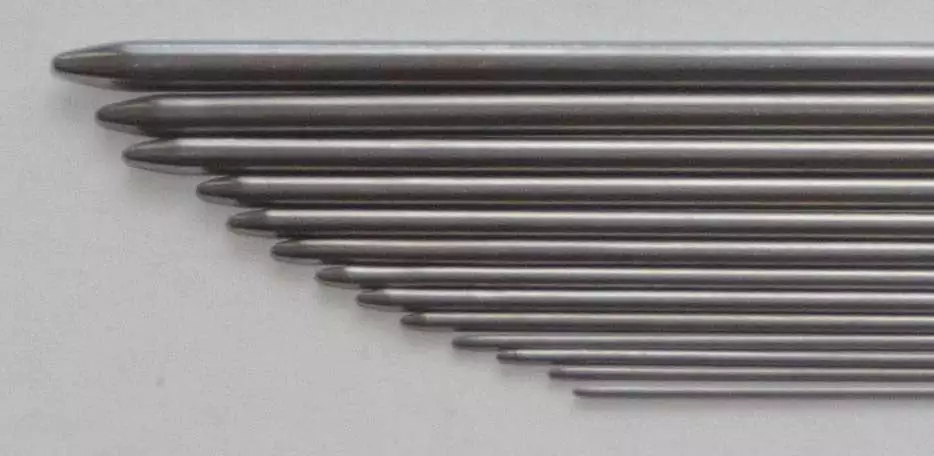

Hollow Threading Needles:
| Model | Description | Tube | OD Size | ID Size* | Spectra Sizes |
| N03020 | 20 to 30# Small Threading Needle | 5.4″ | .028″/.710mm | .020″/.510mm | up to 80# |
| N04023 | 30 to 40# Small Threading Needles | 5.5″ | .032″/.810mm | .023″/.580mm | up to 80# |
| N05026 | 40 to 50# Threading Needle | 5.6″ | .036″/.900mm | .026″/.670mm | 60 to 130# |
| N06032 | 50 to 60# Threading Needle | 5.7″ | .042″/1.06mm | .032″/.810mm | 80 to 130# |
| N08038 | 60 to 80# Threading Needle | 5.8″ | .050″/1.27mm | .038″/.960mm | 100 to 300# |
| N10042 | 80 to 100# Threading Needle | 5.9″ | .050″/1.27mm | .042″/1.06mm | 100 to 300# |
| N13047 | 100 to 130# Threading Needle | 6.0″ | .058″/1.48mm | .047″/1.19mm | 130 to 300# |
| N15053 | 130 to 150# Threading Needle | 6.1″ | .065″/1.65mm | .053″/1.35mm | 200# and up |
| N20060 | 150 to 200# Threading Needle | 6.2″ | .072″/1.83mm | .060″/1.50mm | 200# and up |
| N30067 | 200 to 300# Big Threading Needle | 6.3″ | .083″/2.11mm | .067″/1.70mm | 300# and up |
| N40077 | 300 to 400# Big Threading Needle | 6.4″ | .095″/2.41mm | .077″/1.96mm | 400# and up |
| N50091 | 400 to 500# Big Threading Needle | 6.5″ | .0109″/2.77mm | .091″/2.31mm | 500# and up |

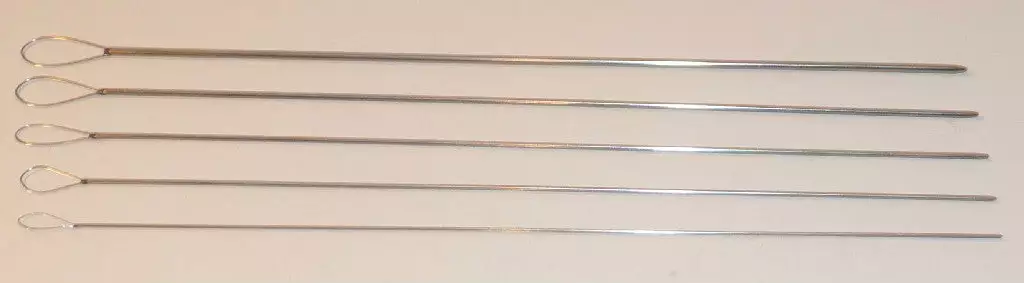

Loop Splicing Needles:
| Model | Description | OD Size | Spectra Sizes |
| LS0250 | X-Small Loop Splicing Needle | .0250″/.635mm | 50# to 80# |
| LS0355 | Small Loop Splicing Needle | .0355″/.90mm | 60# to 130# |
| LS0420 | Medium Loop Splicing Needle | .0420″/1.06mm | 80# to 200# |
| LS0500 | Large Loop Splicing Needle | .0500″/1.27mm | 130# to 300# |
| LS0650 | X-Large Loop Splicing Needle | .0650″/1.65mm | 300# and up |

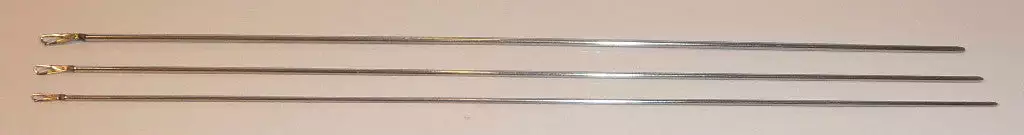

Reverse Latch Needles:
| Model | Description | OD Size | Spectra Sizes |
| RL0355 | Small Reverse Latch Needle | .0355″/.90mm | 60# to 130# |
| RL0420 | Medium Reverse Latch Needle | .042″/1.06mm | 80# to 200# |
| RL0500 | Large Reverse Latch Needle | .050″/1.27mm | 130# to 300# |
Needle Sets:
| Model | Description |
| CLSSET | Set of all three Standard Loop Splicing Needles |
| CRLSET | Set of all three Standard Reverse Latch Splicing Needles |
| CNSET | Set of all seven Standard Threading Needles |
| CFLSET | Set of all seven Threading and all three Loop Splicing Needles – 10 Standard needles |
| CFLRSET | Complete set of 13 Standard Needles – all seven Threading, all three Loop Splicing and all three Reverse Latch Needles |
| Model | N02030 – 20 to 30 lb. Threading Needle, N04023 – 40 to 30 lb. Threading Needle, N05026 – 40 to 50 lb. Threading Needle, N06032 – 50 to 60 lb. Threading Needle, N08038 – 60 to 80 lb. Threading Needle, N10042 – 80 to 100 lb. Threading Needle, N13047 – 100 to 130 lb. Threading Needle, N15053 – 130 to 150 lb. Threading Needle, N20060 – 150 to 200 lb. Threading Needle, N30067 – 200 to 300 lb. Threading Needle, N40077 – 300 to 400 lb. Threading Needle, N50091 – 400 to 500 lb. Threading Needle, LS0250 – Xtra Small Loop Splicing Needle, LS0355 – Small Loop Splicing Needle, LS0420 – Medium Loop Splicing Needle, LS0500 – Large Loop Splicing Needle, LS0650 – Xtra Large Loop Splicing Needle, RL0355 – Small Reverse Latch Needle, RL0420 – Medium Reverse Latch Needle, RL0500 – Large Reverse Latch Needle, CLSSET – Loop Splicing Set, CRLSET – Reverse Latch Needle Set, CNSET – 7 Threading Needle Set, CFLSET – Loop & Threading Set, CFLRSET – Loop + Threading + Reverse Latch Set |
|---|
